Kadee #23 HO Scale 20-Series Plastic Couplers with Gearboxes - Short (1/4") Centerset Shank

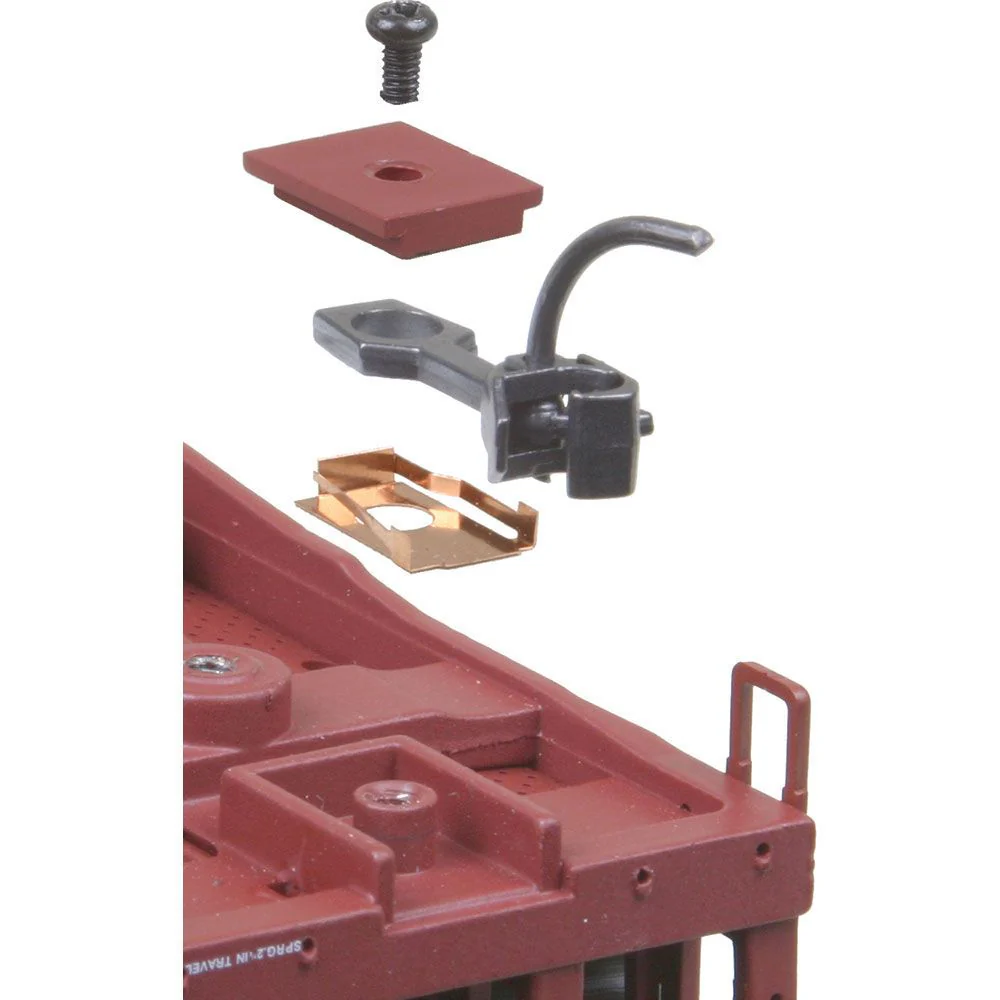

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#23 Magne-Matic® Plastic Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Two pair per package

UPC: 765484000235

  Made in the U.S.A.

HO-Scale

Package Includes:

• (2) Pair #23 Plastic Shank Couplers - Short Centerset Shank
• (2) Pair #634 Centering Spring NO.5® Style
• (2) Pair #213 055" ID & .100" ID Bushing/Sleeves

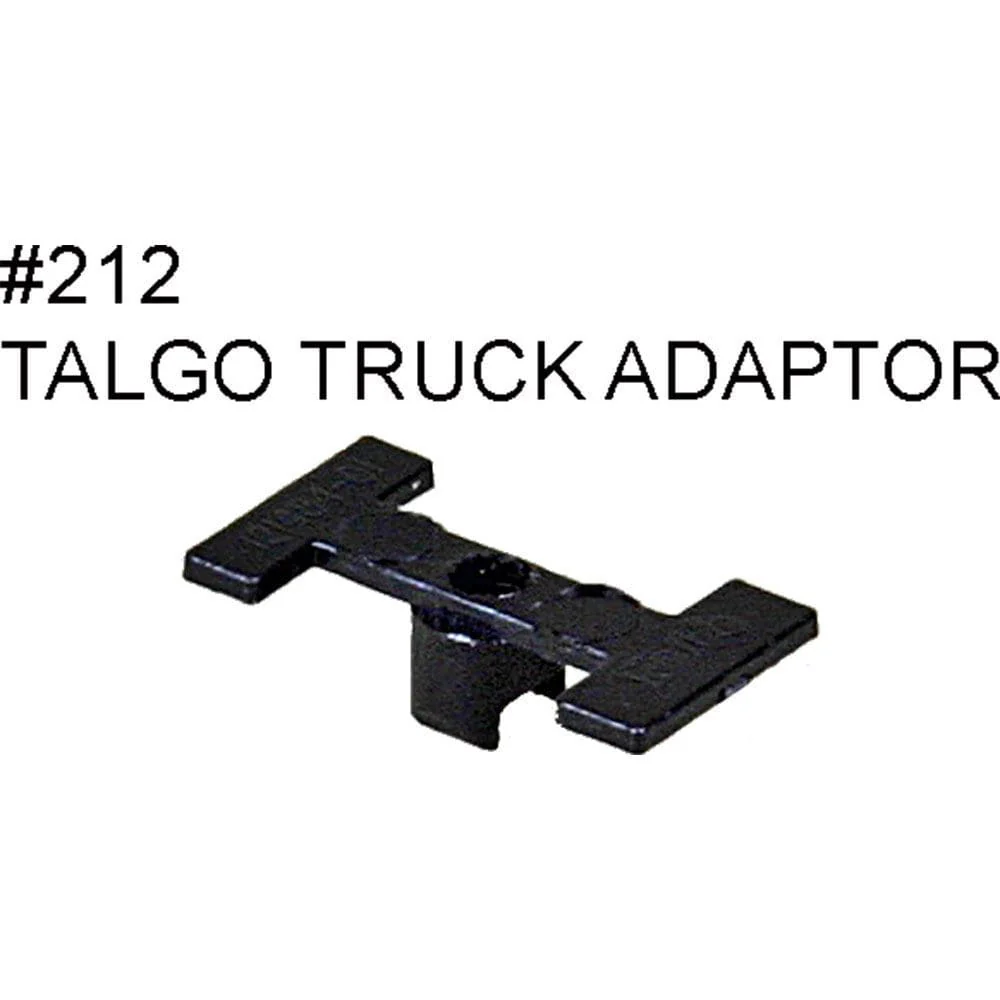

• (2) Pair #212 Talgo Truck Adaptors
• (2) Pair #213 Gearboxes
• (2) Pair #232 Gearboxes
• (2) #622 Knuckle Springs

Material	-   Metal Knuckle, Plastic Coupler Shank

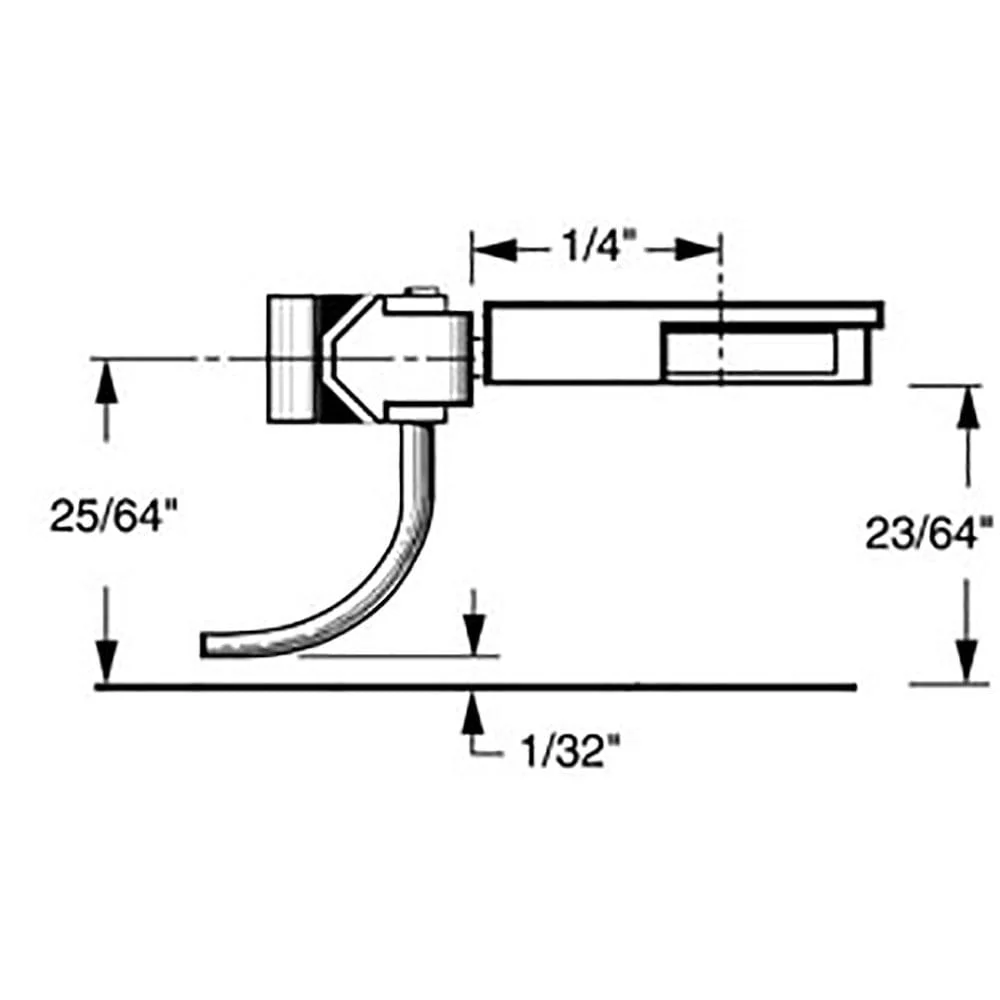

Shank Length	-   Short (1/4") (center hole to back of coupler head)
Coupler Offset	-   Centerset
Knuckle Spring	-   #622
Centering System	-   Standard Shank
Centering Spring	-   #634 Centering Spring NO.5® Style
Head	-   Standard Head
Works In Place of	-  #143, short centerset "clone" couplers
Works With	-   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

Material	-   Insulated Plastic
Works With	-   NO.5®, #58, 20-Series and all Whisker® Couplers

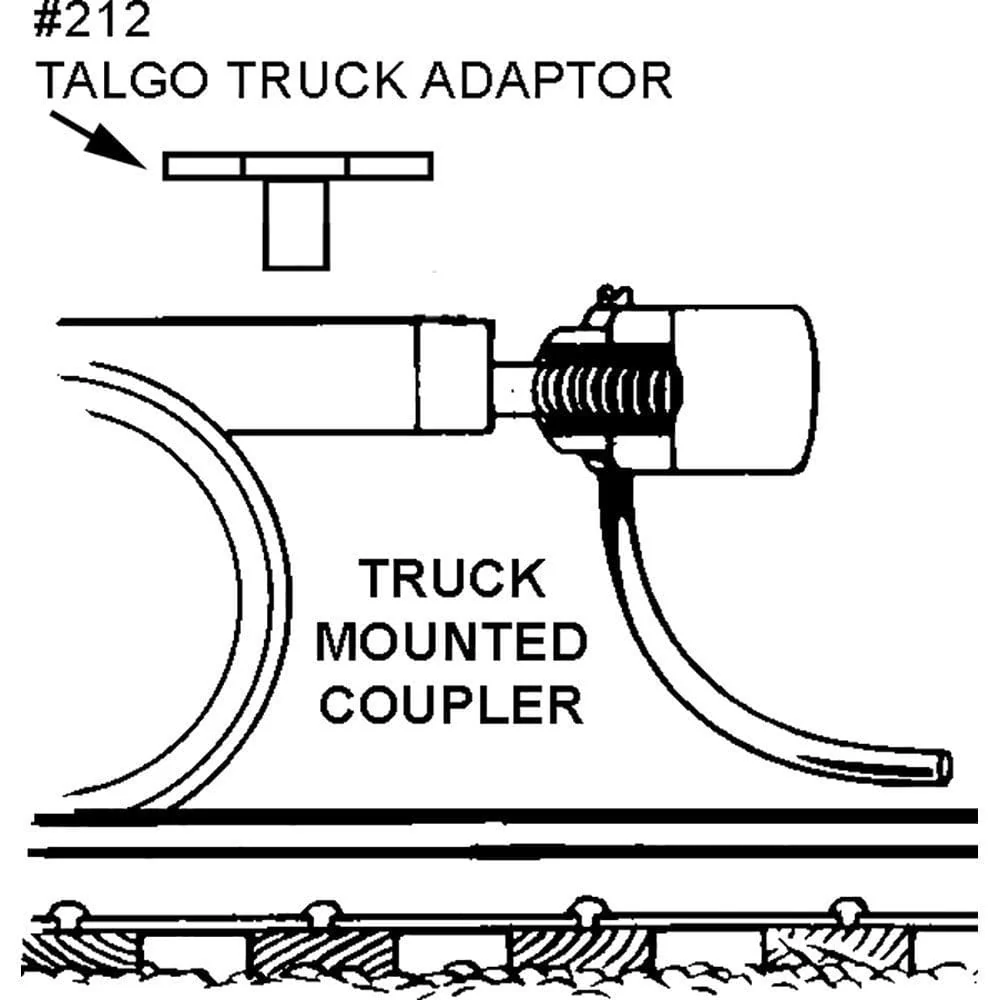

To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a #205 or newer #206 HO coupler height gauge.
NOTE: So it is important to check coupler height and make sure it is correct "before" you insert the talgo truck adaptor, because it's almost impossible to remove without breaking something.
