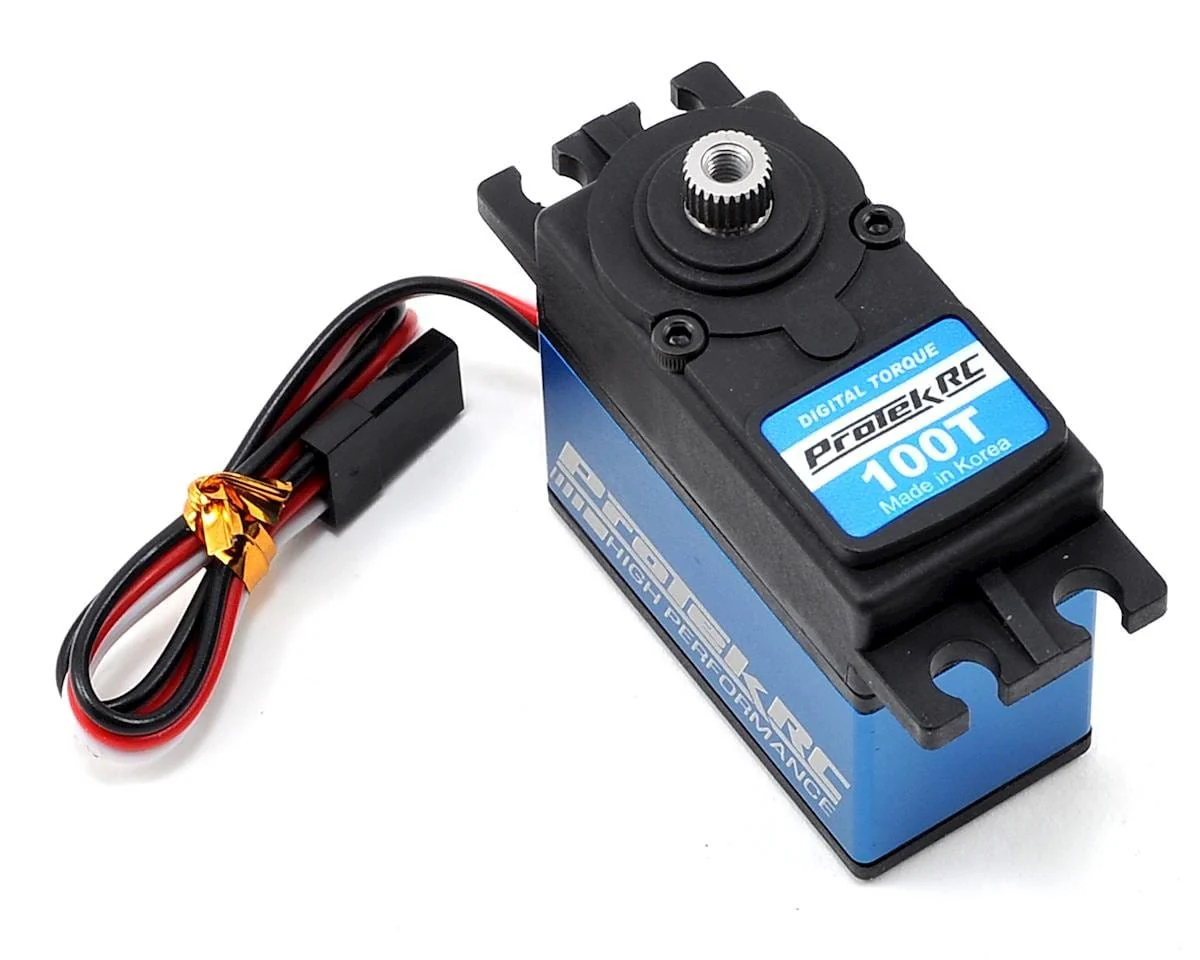

ProTek RC 100T Standard Digital High Torque Metal Gear Servo
This is the ProTek R/C 100T Digital Torque Metal Gear Servo. ProTek R/C Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level. With features that meet or surpass what the competition can provide, ProTek R/C servos deliver performance and unmatched value, with industry leading customer support.
The ProTek R/C 100T Digital Torque servo delivers a powerful 216 oz-in of torque with a 0.14 transit speed at 6.0V. Other features include a full metal gear train that is supported by dual ball bearings, a 200mm long 22awg connector wire with gold plated connectors, a cored motor and an aluminum middle case that helps to dissipate heat and helps to increase efficiency.Ā
Stop wasting your money on budget servos that look good in the spec list, but fall short when its time to perform. Get ProTek and don't look back.Ā
Warning!Ā This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.
Features:
- Ideal for any 1/10 scale vehicle application
- Aluminum middle case
- 0.14 transit speed, and 216 oz-in of torque @ 6.0V

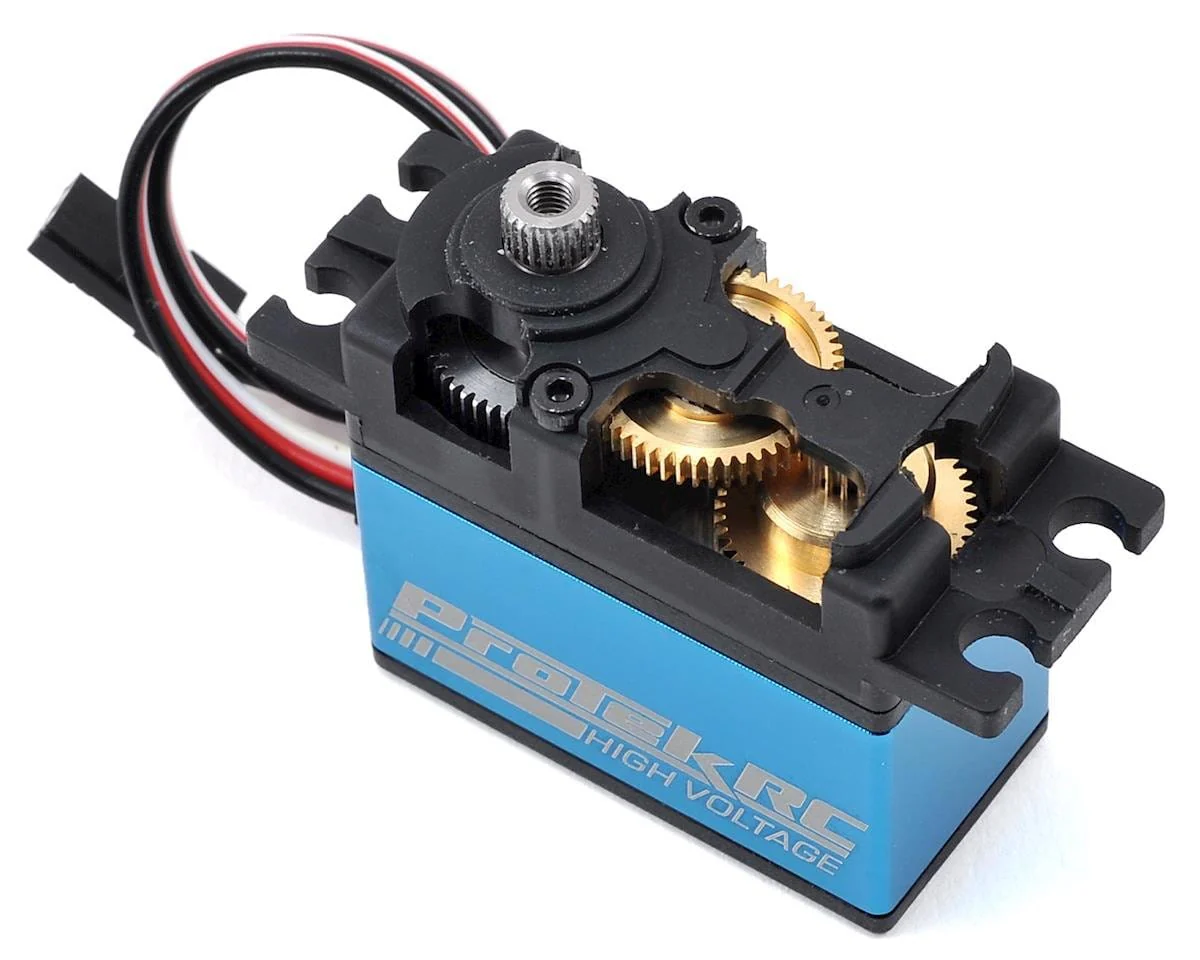

- Full metal gears and dual ball bearings
- 200mm long 22awg connector wire w/gold plated connectors
- Cored Motor
| Servo Model |
100T |
| Recommended Application | 1/10 Surface |
| Operating Voltage | 4.8V - 6.0V |
| Operating Temperature | 14Ā° to 140Ā° F (-10 to +60Ā° C) |
| Operating Speed @ 4.8V | 0.17/60Ā° sec |
| Operating Speed @ 6.0V |
0.14/60Ā° sec |
| Dynamic Torque @ 4.8V |
173 oz-in (12.5 kg-cm) |
| Dynamic Torque @ 6.0V |
216 oz-in (15.6 kg-cm) |
| Motor Type |
Cored DC Motor |
| Output Shaft | 25 Tooth |
| Gears | Metal |
| Weight | 54.9g |
| Pulse/Frequency |
1520?s / 333hz |
